The Queen of yachts....

Here´s technical information to our Magia, an AMEL Kirk from 1974.

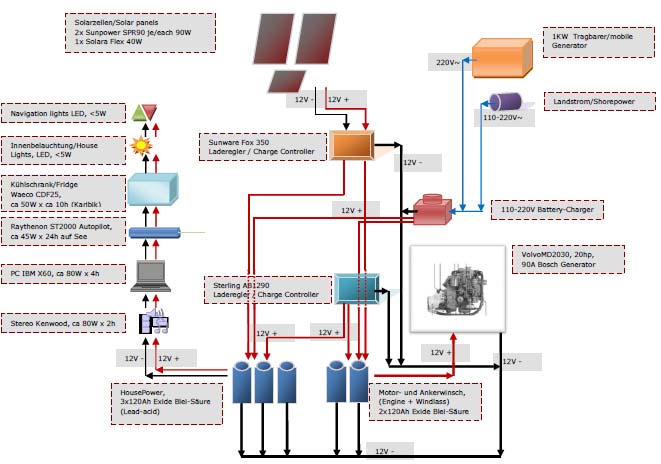

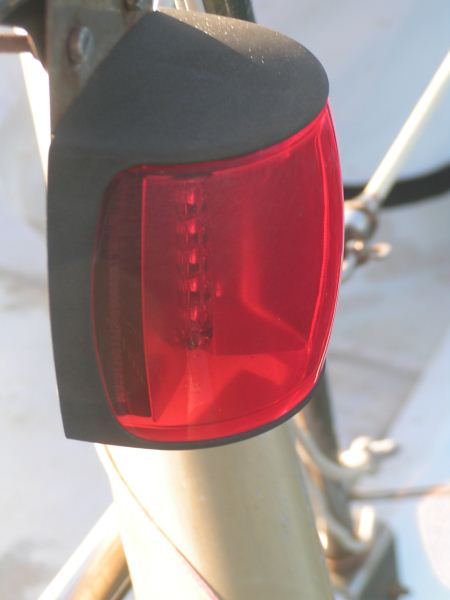

Sketch- and Sailplan are from Amel, the wiring scheme is somewhat changed meanwhile, so that one is mine. It is just a basic schematic plan, to get a detailed insight in how a 12V Installation really works I´d recommend the book "12V Batteriestrom" by Lothar Jürgens, a sailing Electronic Engineer. His Company LED Victorialight (sh. "Friends) also provides all my Inboard LED-lights - the only ones so far that are powerful enough and give a conveniently colored yellow light. Consumption of LED´s generally is very low - switching off the Nav-Lights in order to save energy is not only a bit insane but from the past!
And on MAGIA not necessary at all, even in caribean conditions (often clouds, short days, always hot) my solar panels produce enough to run my main consumers. The trick is to work on both ends of the system: Get as many panels as fit, get the best ones, add decent Charge Controllers, and then think twice about every consumer. On MAGIA this means a small IBM X60 low consumption Laptop instead of my faster and better Asus, a small 25L Fridge of best energy efficiency (Waeco CDF25)and all lights in- and outside LED´s. My Engine is running once a week for 30min, to check it and not to charge batteries!
And still I have cold beer.... Only at sea, if the autopilot runs, I run the engine once ervery 3-4 days for an 60-90 min - on the long trip I managed to combine that with calms.

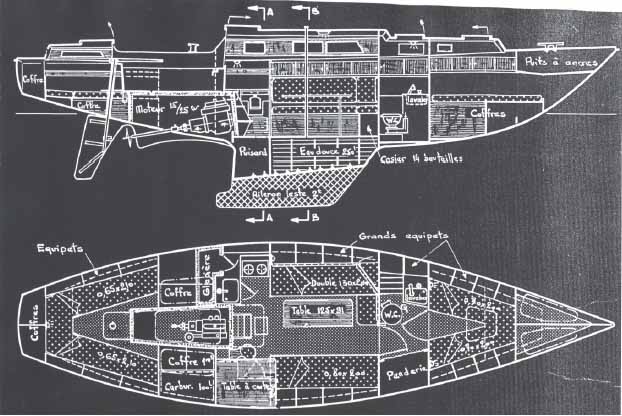

Originalskizze von Amel

Skizze

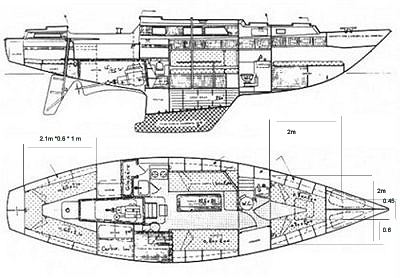

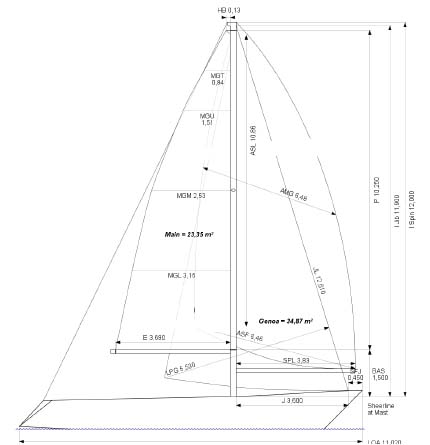

Segelplan und Masse

Skizze

Stromlaufplan

Skizze

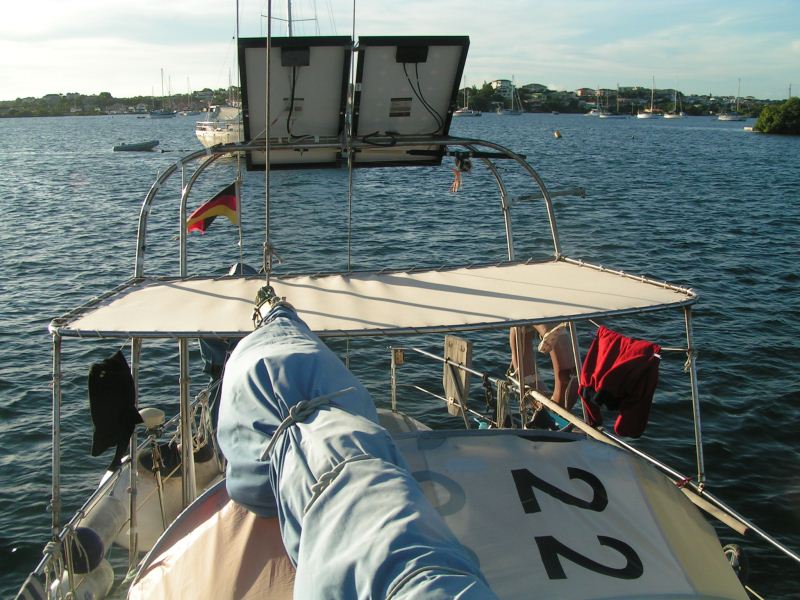

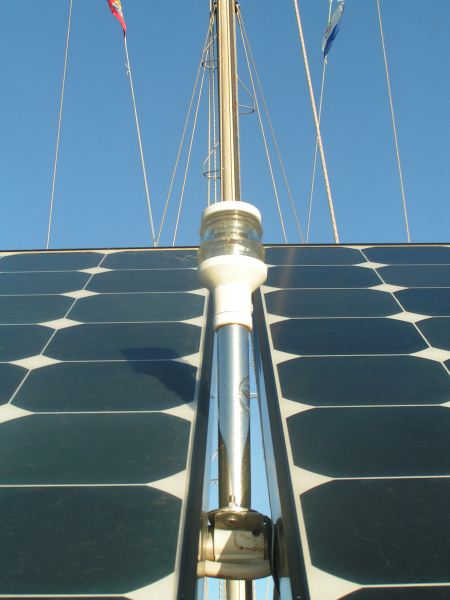

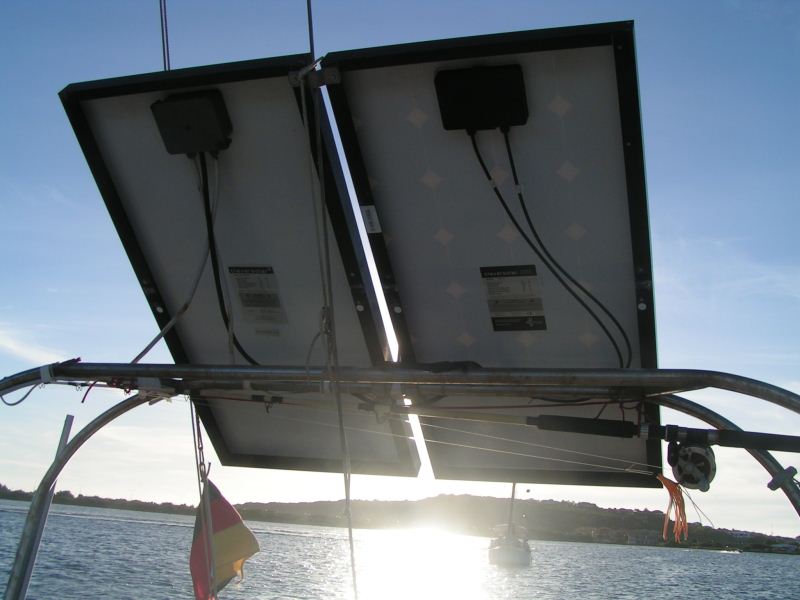

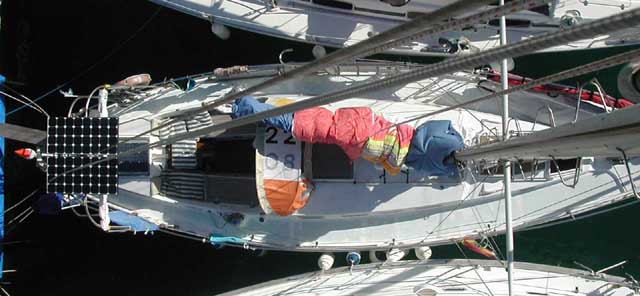

Magia Oktober 2009 in Teneriffa, die 3 Solarzellen sind hier gut zu sehen

Skizze

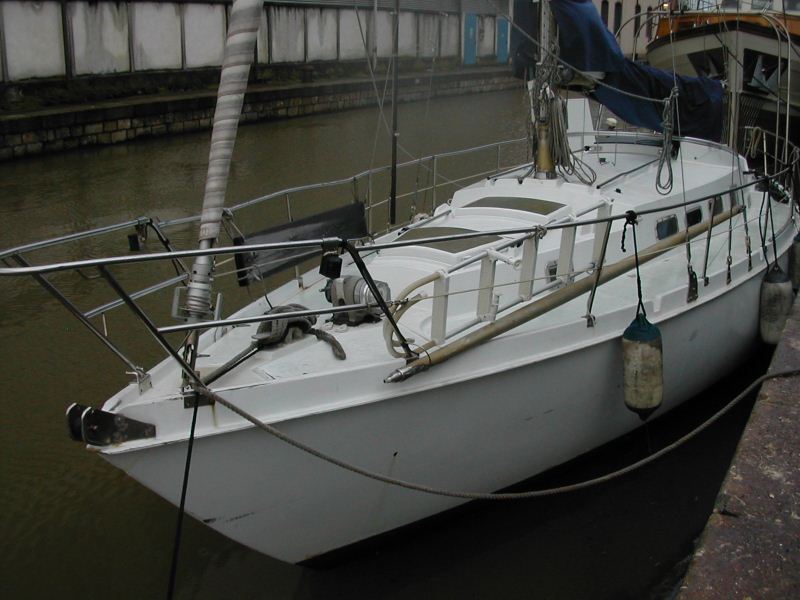

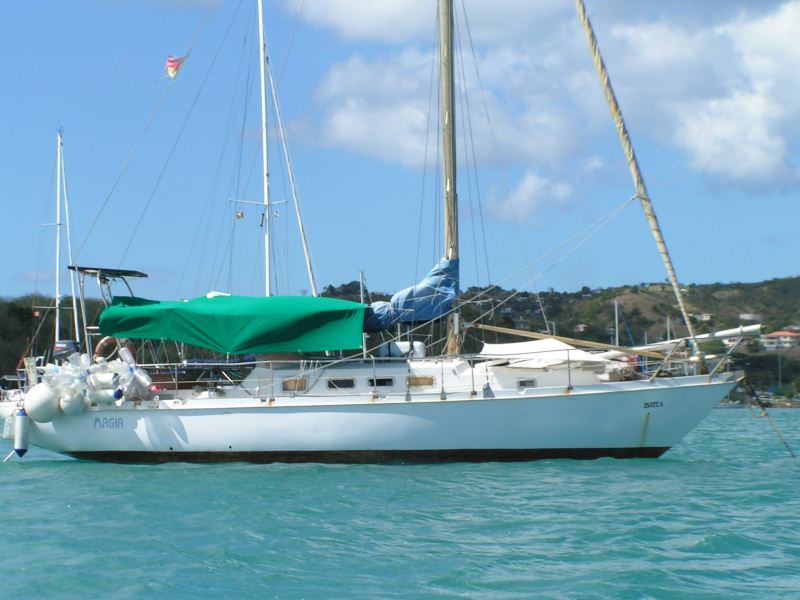

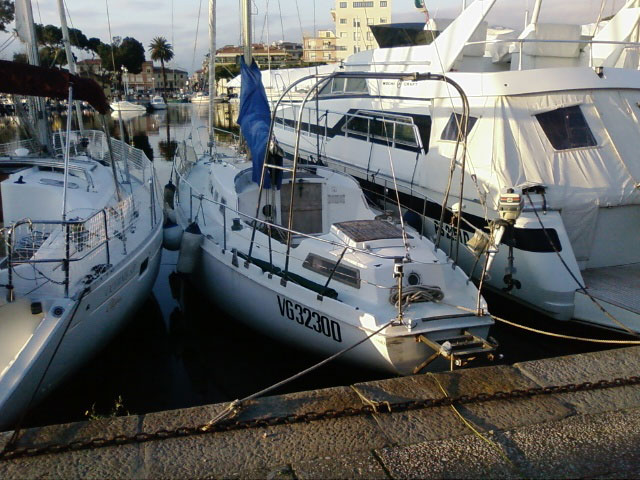

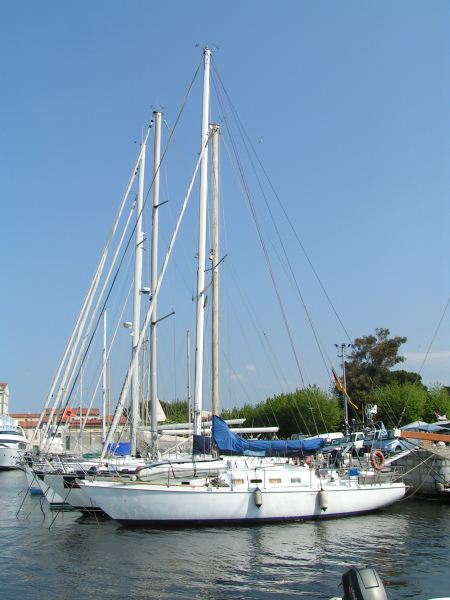

Magia moored in Viareggio, her Home Port

Friendship

Collection MAGIA III

Bild 1	Bild 2	Bild 3	Bild 4	Bild 5
Bild 6	Bild 7	Bild 8	Bild 9	Bild 10
Bild 11	Bild 12	Bild 13	Bild 14	Bild 15
Bild 16	Bild 17	Bild 18	Bild 19	Bild 20
Bild 21	Bild 22	Bild 23	Bild 24	Bild 25
Bild 26	Bild 27	Bild 28	Bild 29	Bild 30
Bild 31	Bild 32	Bild 33	Bild 34	Bild 35
Bild 36	Bild 37	Bild 38	Bild 39	Bild 40
Bild 41	Bild 42	Bild 43	Bild 44	Bild 45
Bild 46	Bild 47	Bild 48	Bild 49	Bild 50
Bild 51	Bild 52	Bild 53	Bild 54	Bild 55
Bild 56	Bild 57	Bild 58	Bild 59	Bild 60
Bild 61	Bild 62	Bild 63	Bild 64	Bild 65
Bild 66	Bild 67	Bild 68	Bild 69	Bild 70
Bild 71	Bild 72	Bild 73	Bild 74	Bild 75
Bild 76	Bild 77	Bild 78

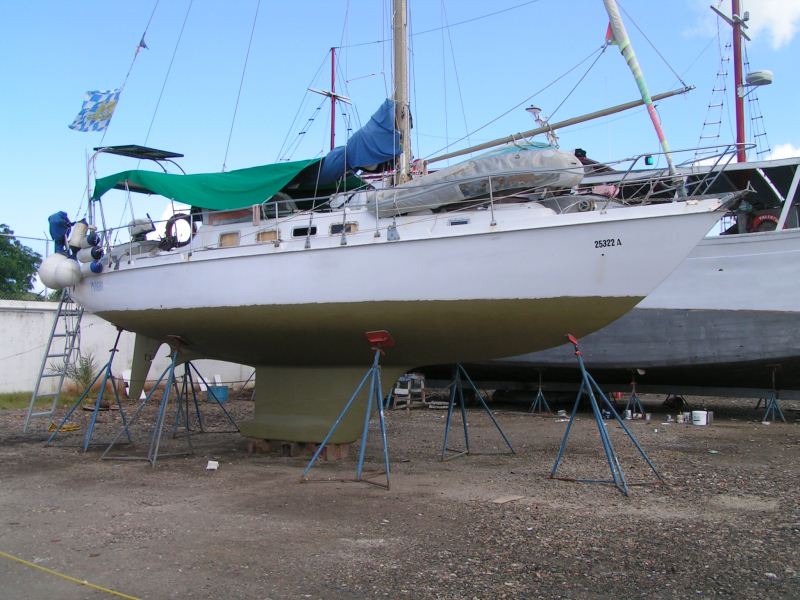

MAGIA III

We constantly updated Magia III the last years to get her finally "fit for the caribbean", but unfortunately we now have to head home. What´s still to be done is a oil- and filter change on the Volvo and painting the decks white (paint partially already aboard). Apart from that she got everything needed for month of cruising, starting with an autopilot with plenty of spare parts down to the sparkplug for the outboard. MAGIA is a safe nicely sailing cruiser, coming complete with 6 sails equipped for everything what comes her way. She carried me thru some situations already totally unimpressed and was always easy to handle singlehanded. Ideal for the adventurer with small budget! Bring a set of clothing, fill the water, one trip to the supermarket and away��. We want MAGIA to be sailing with a new owner soon, so she is priced to sell! Details regarding the windsurfing equipment or any other questions : skipper@yachtlogbuch.com

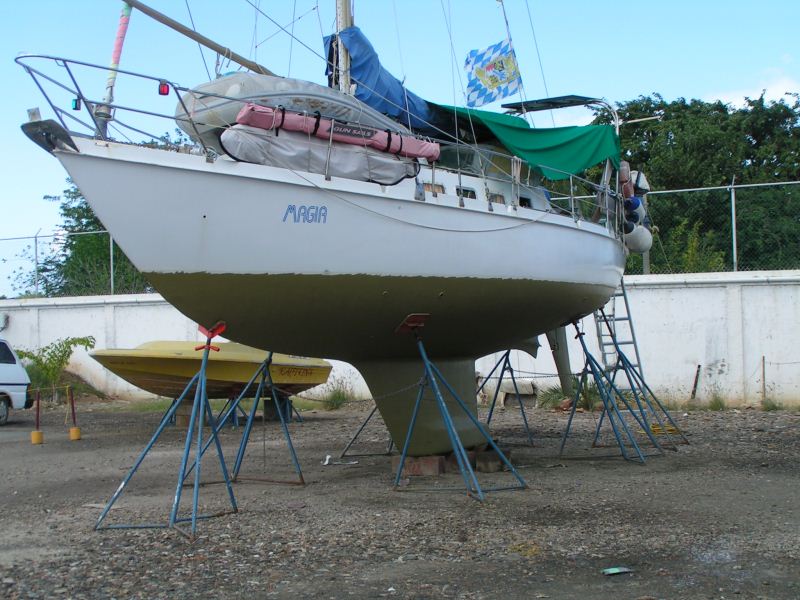

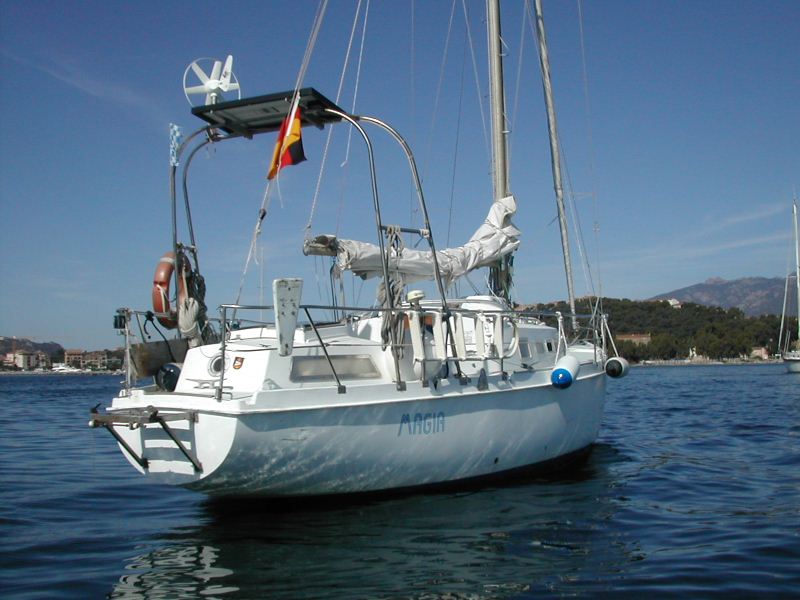

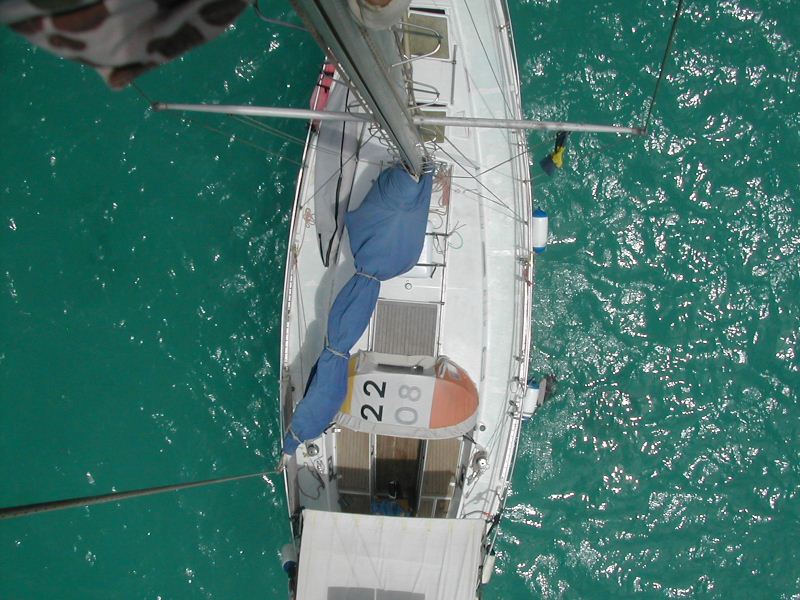

Amel Kirk Bj 1974
10,8 * 2,99 * 1,65m
Bowcabin double bed, bathroom/WC, Salon (2 bunks), aftcabin 2 bunks
BRT 10,5t
Mast 12m above deck
MAGIA is registered in Germany with the ADAC

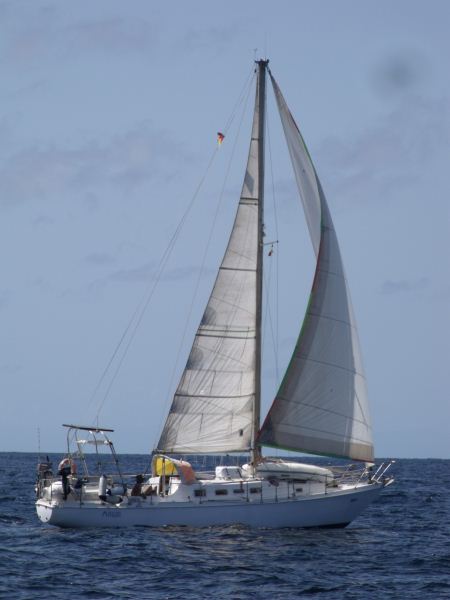

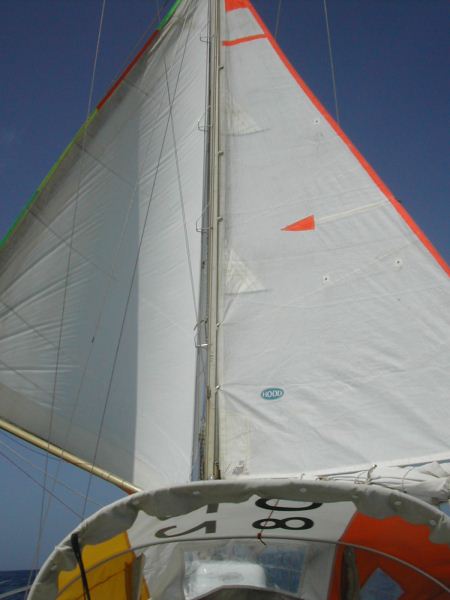

Sails:

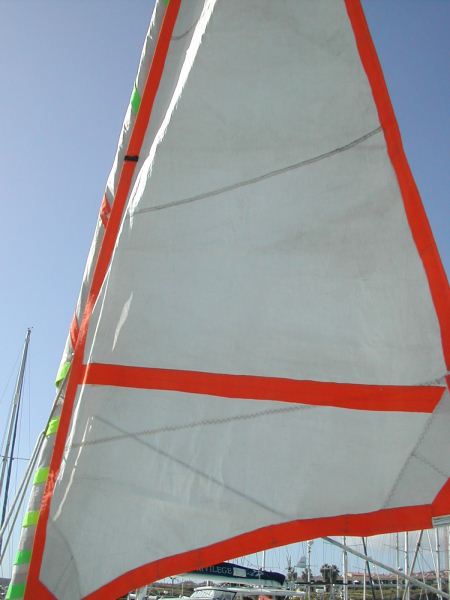

2*Genua
2*Main Sail
Heavy Weather Headsail
Try Sail (Heavy Weather Main)

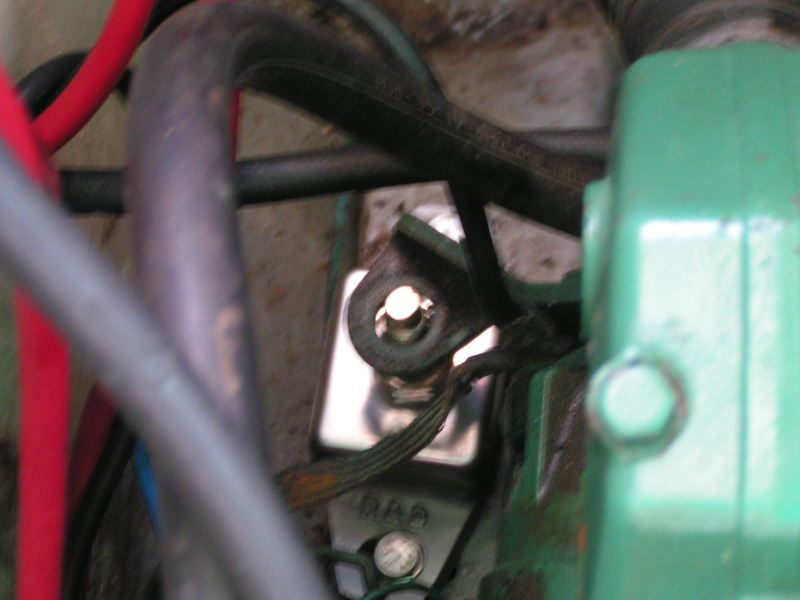

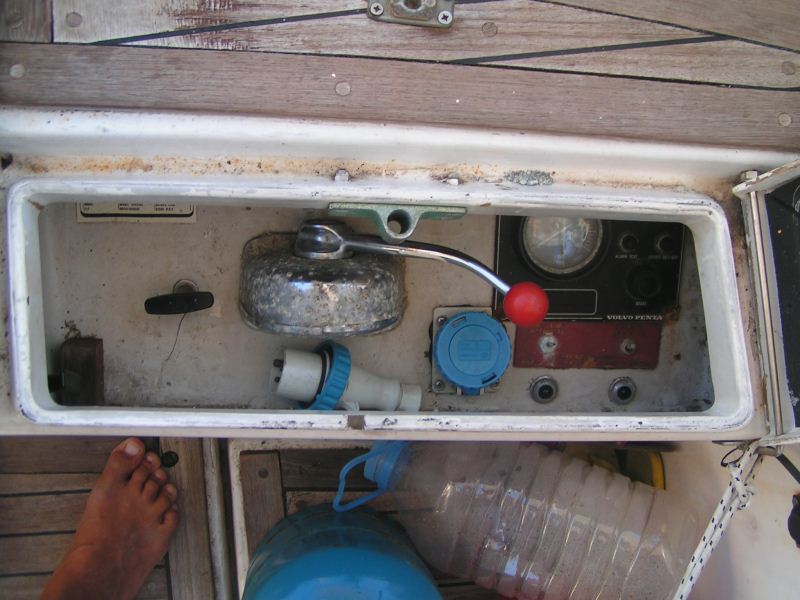

Motor

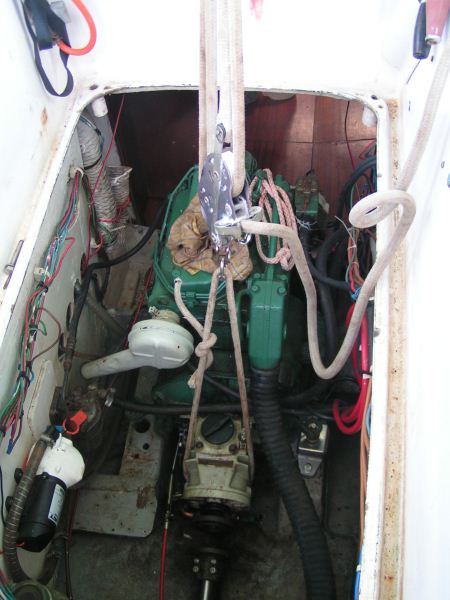

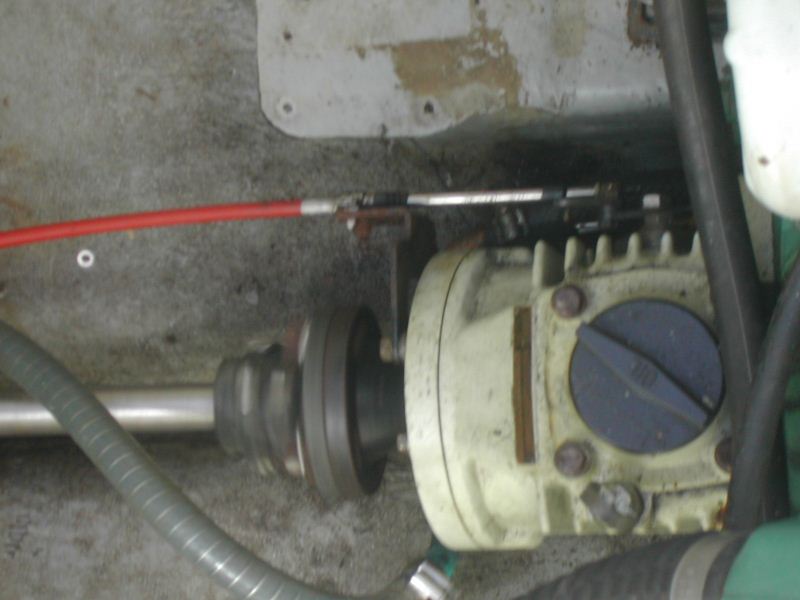

Volvo MD2030
3 cylinder Diesel
Seawater cooled
28hp
70l Dieseltank, stainless steel
Motor hours: ca 3500

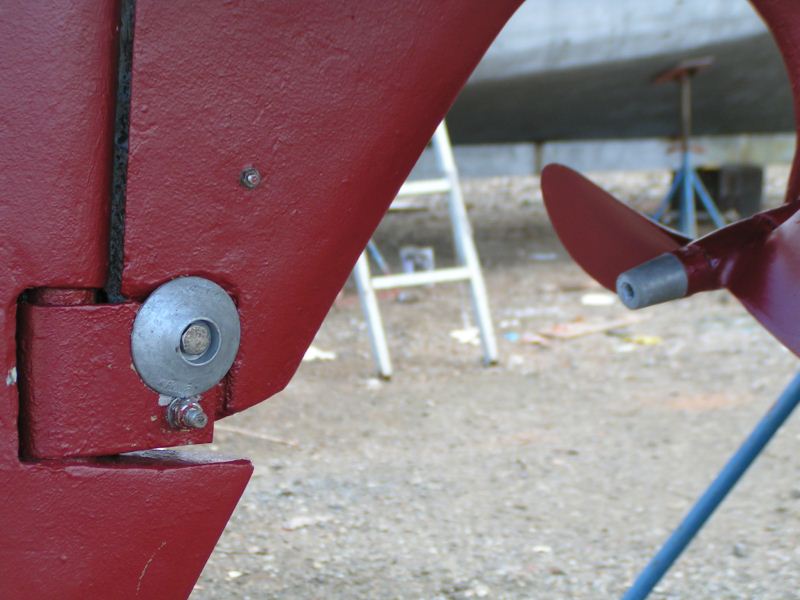

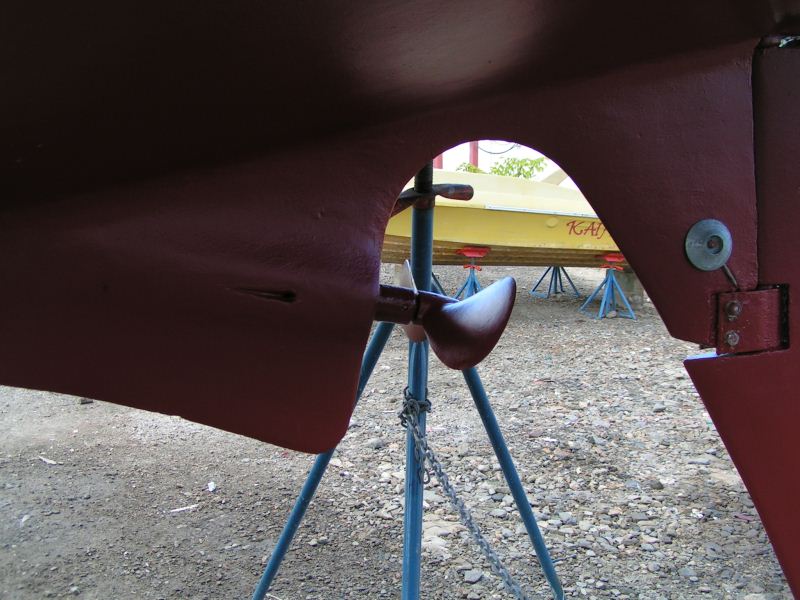

Bronze 2 wing fixed prop, shaft, new bearing 2011, Volvo maintanance free rubberseal

zus. ca 80l Jerry Cans f.Diesel
Spare belt
Spare Filter
Spare Impeller

Outboard
Tohatsu 3,5hp Two stroke

Dinghi
AB 2,6m RIB

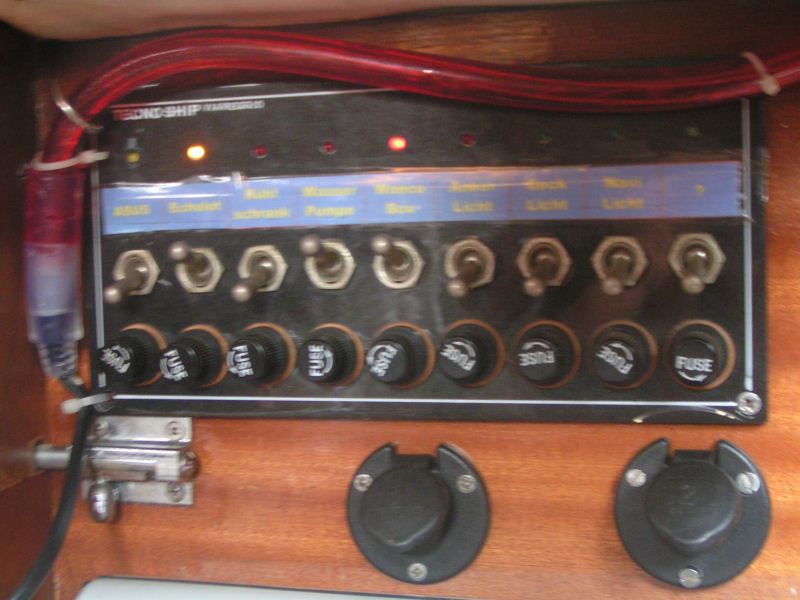

Elektrik
3*120 AH Exide lead-acid House
1*Exide 120AH+ 1*BudgetMarine 120AH Engine start/windlass

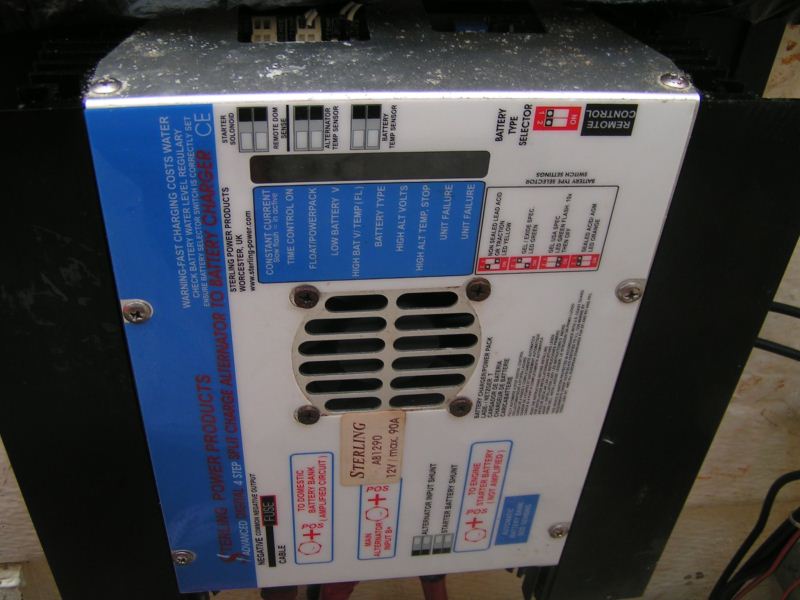

Sterling AB 1290 charge regulator

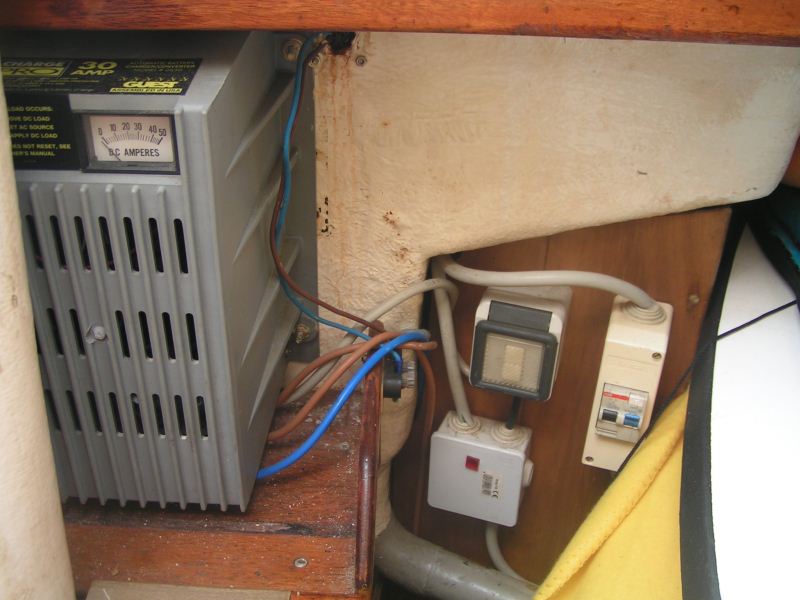

Guest shorepower charger

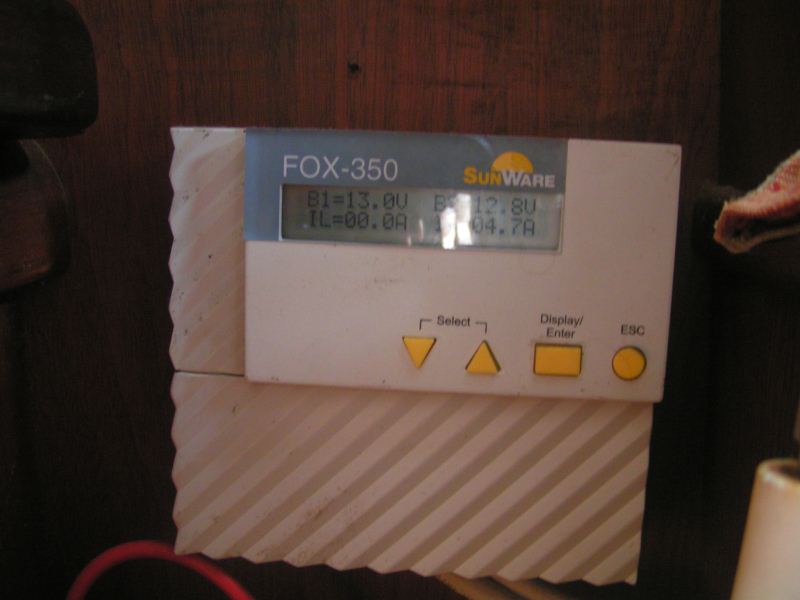

Fox350 solar charge controller

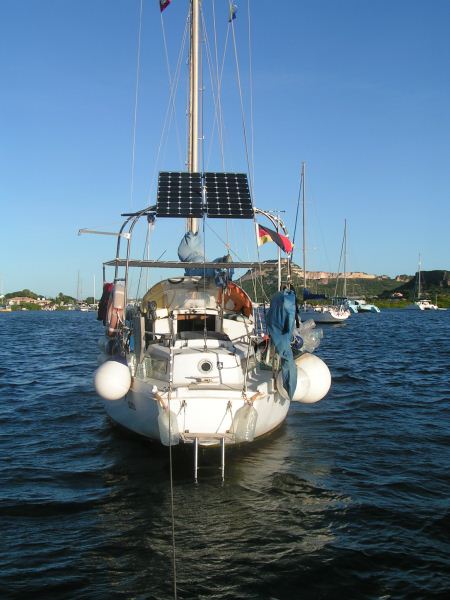

2* Solarcell Sunpower SPR90, each 90W, variable angle

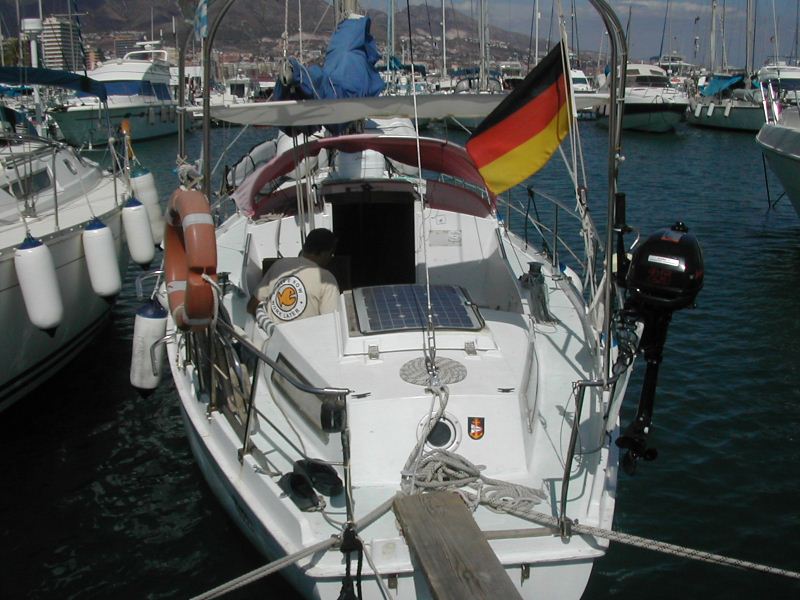

1*Solarcell Solara Flex 40W
Converter 12V-110V~ 500W
Converter 12V-220V~ 150W

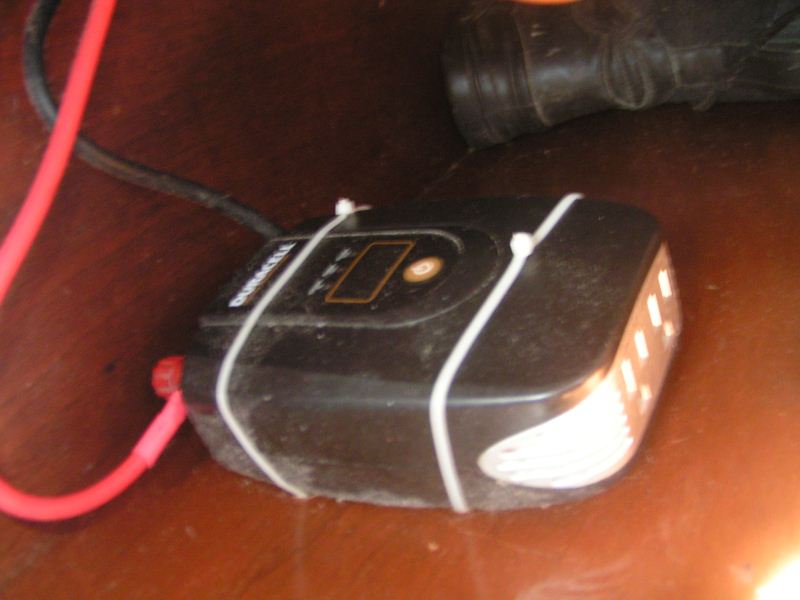

2* PC Converter 12V - 19VDC f Laptops

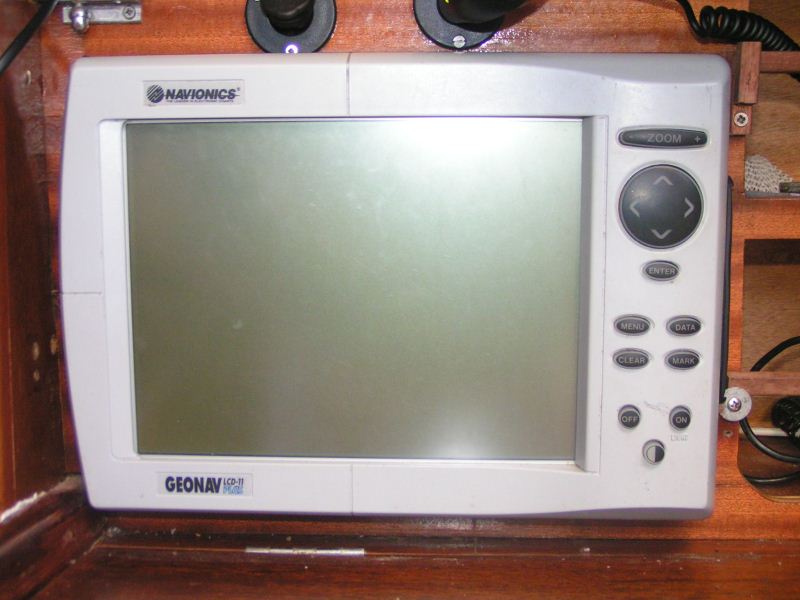

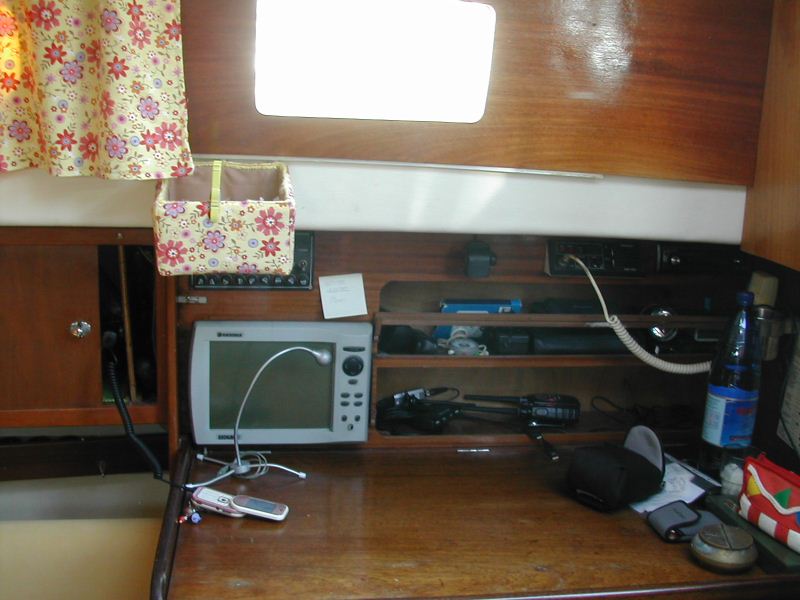

Navionics Geonav Plotter

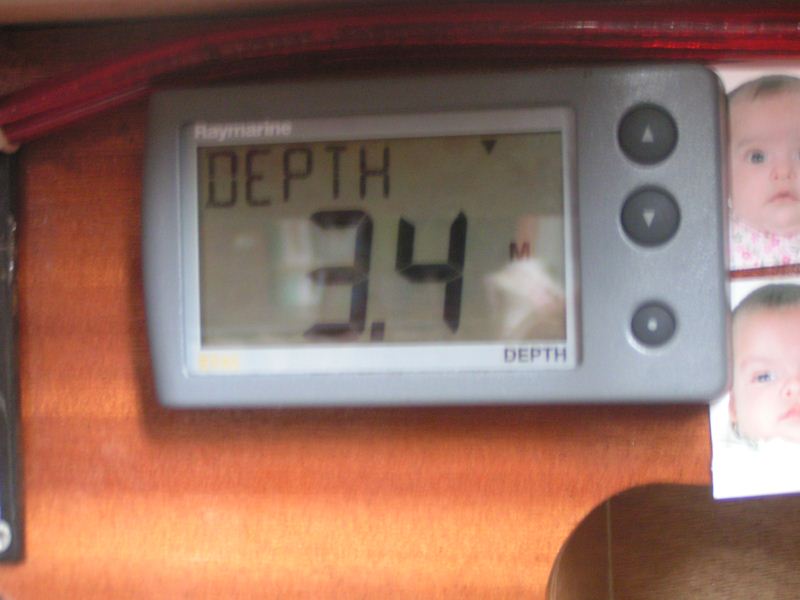

Raymarine ST40 Echolot

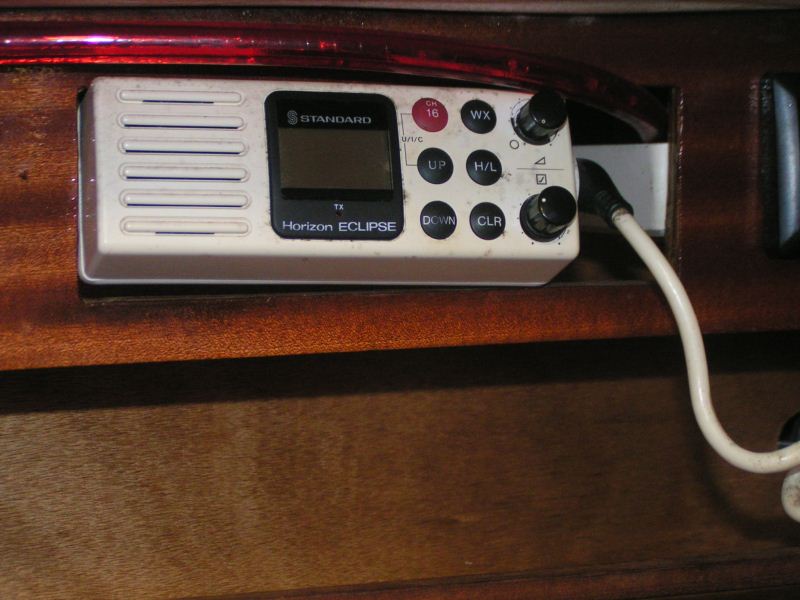

Standard Horizon Marine VHF Radio

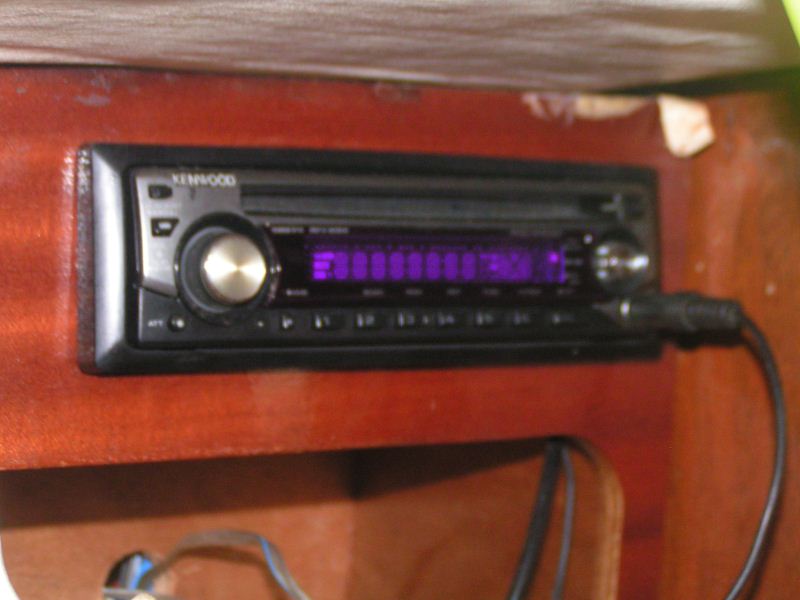

Kenwood Car Stereo System, Pioneer speaker inside, small speakers Cockpit

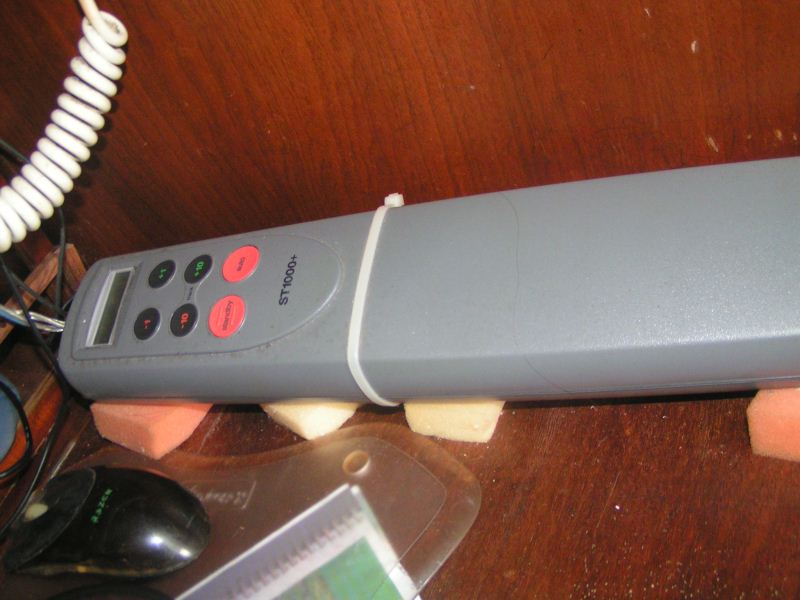

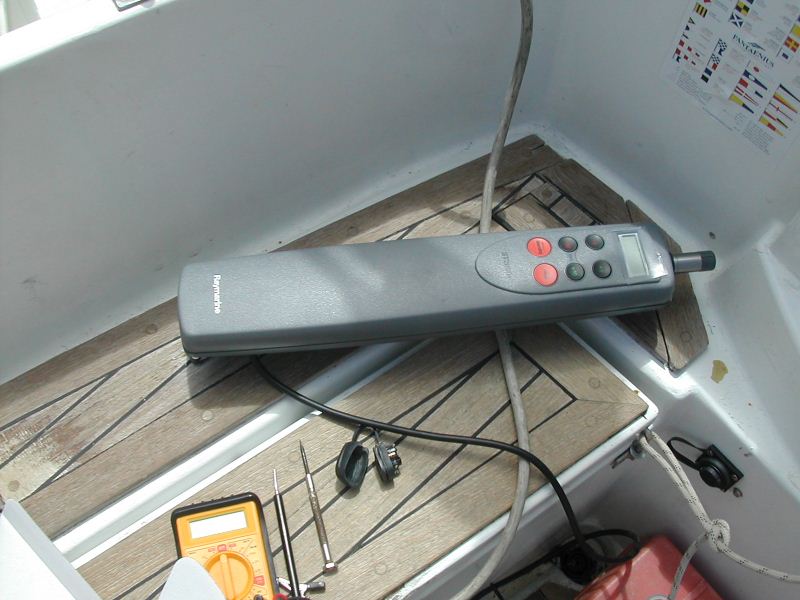

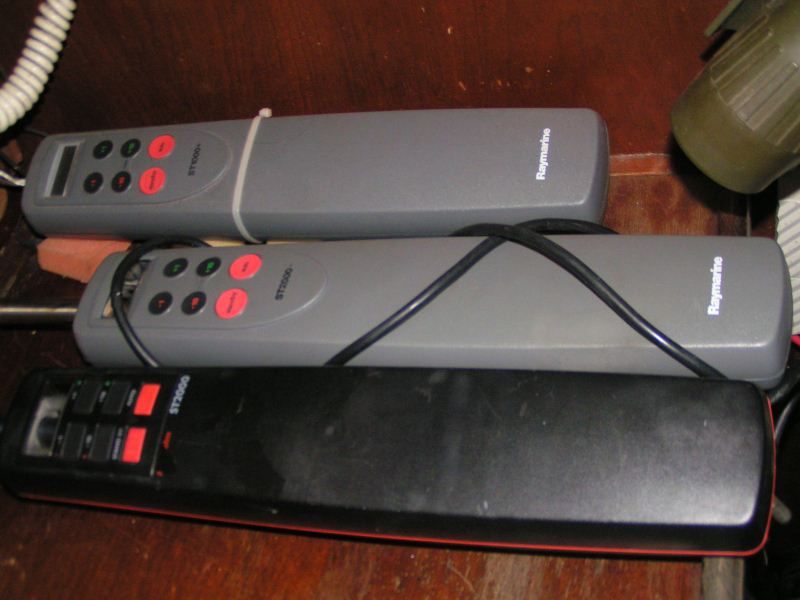

Raymarine Autopilot ST1000 inside as Electronic-unit,

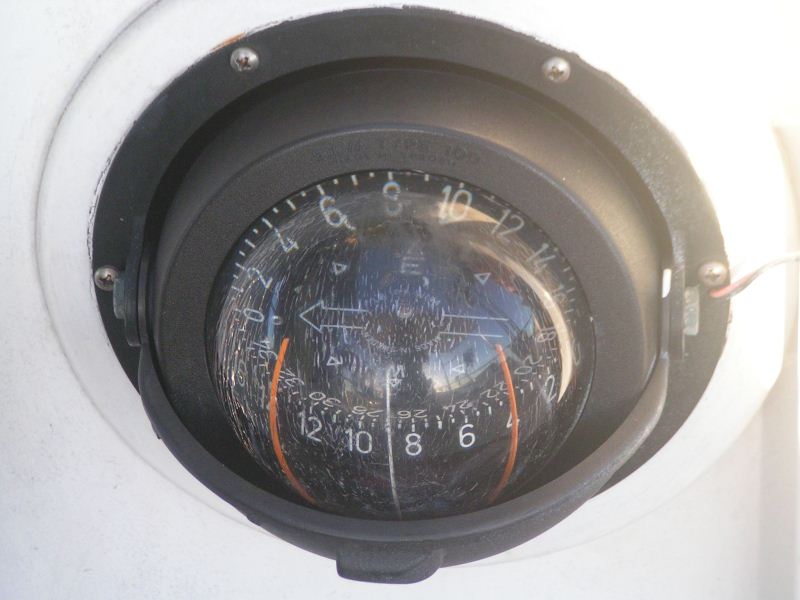

2* Raymarine Autopilot ST2000 just drive units f. cockpit + spare motor/drive unit + spare compass

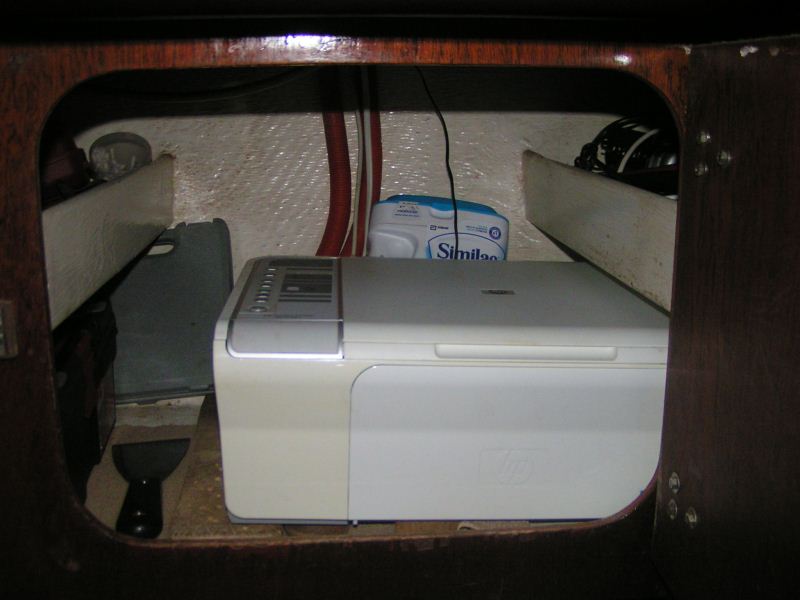

Printer/Scanner/Copier

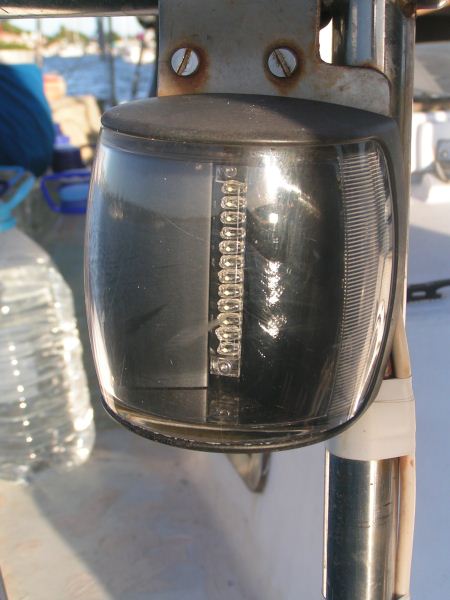

Hella LED Navigations lights
All lights inside LEDs

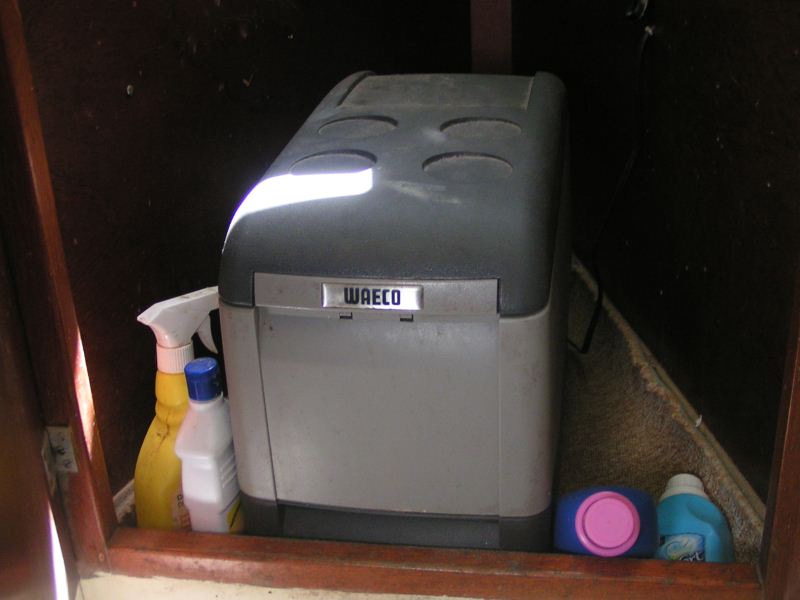

Waeco CDF25 energy efficient compressor fridge, 12V

Water

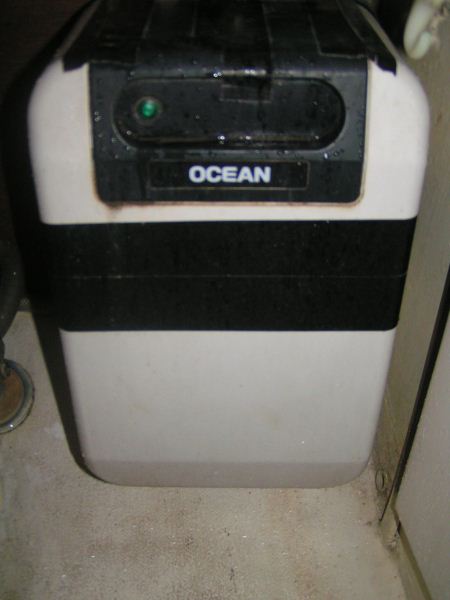

Ocean 220V~ Wasserboiler
Watertank 210l
Flowjet pressure water pump from 2009
New Warm/Cold Mixer with built in shower in bathroom 2012

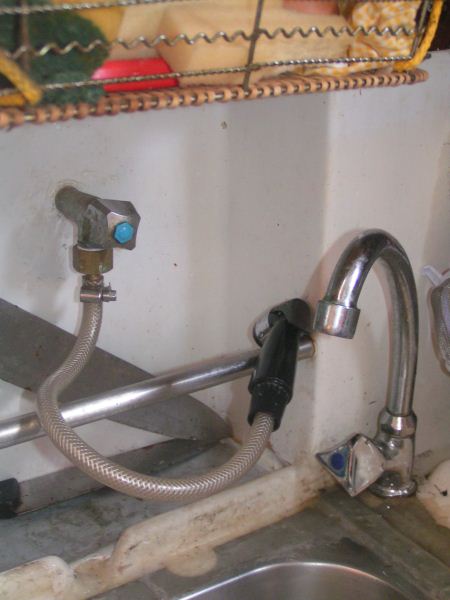

Extra water tap in kitchen for drinking water 2012

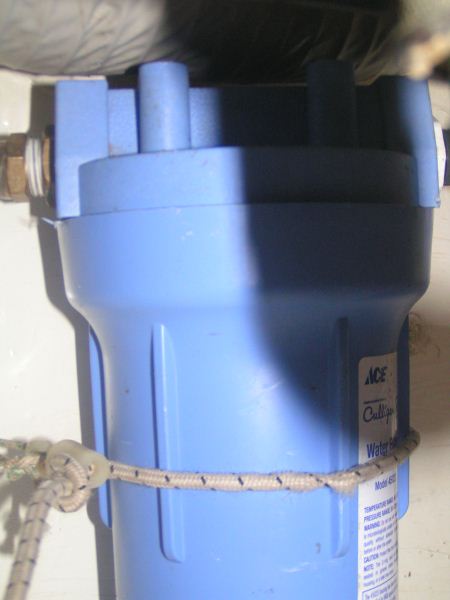

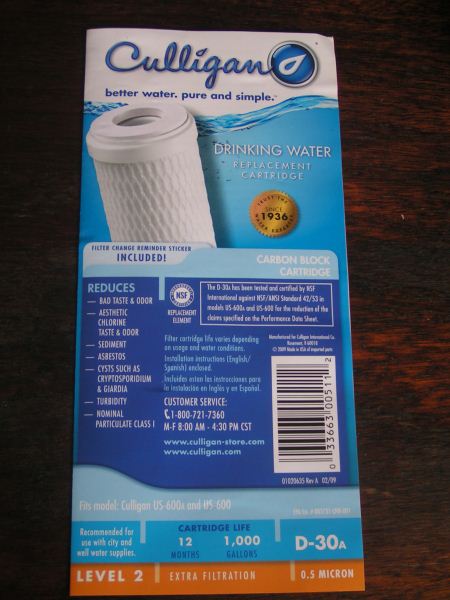

Drinking water filter + spare filter cartdridge 0.5 micron Paper/carbon 2012
Jabsco Toilet, new seals 9/2011

GAS

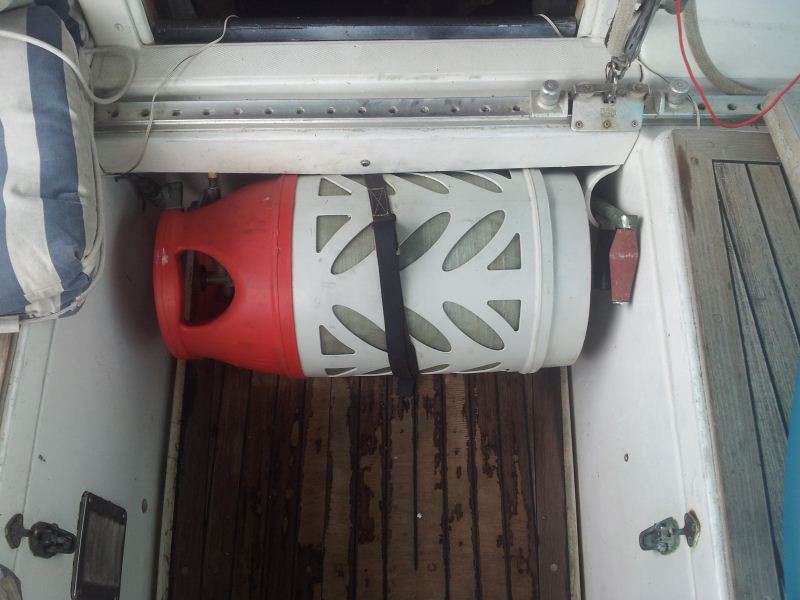

2*10kg fiberglass gas bottles, venezolanian system, with adapter to refill 2012
1*3kg, 1*,75kg Camping Gaz bottles

Anchoring
Danforth 1kg / 50m 10mm chain
CQR-Type 20kg 40m Leine 15m 8mm chain
CQR Type 16kg 30mm 8mm chain
Foldable anchor as Search-anchor
foldable f. Dinghi

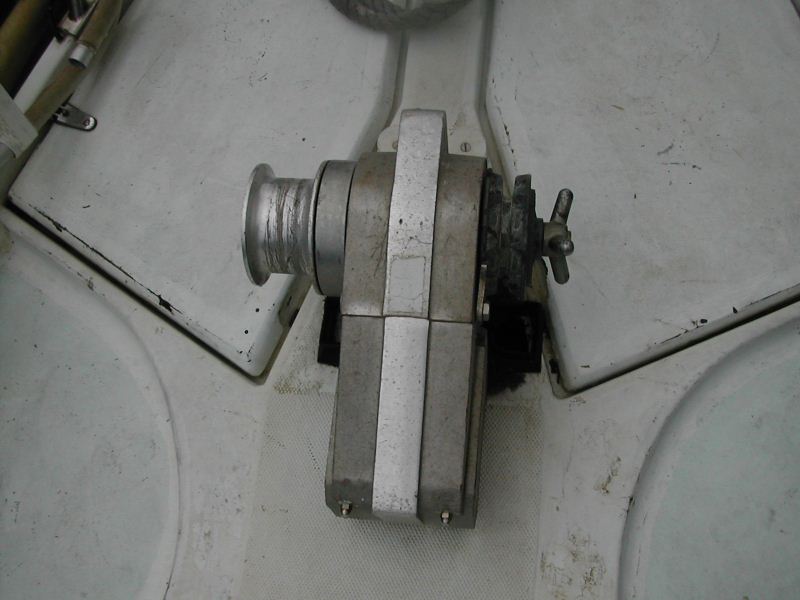

Lowfrans Tigre 900W windlass
Mooring lines, Fenders

Spares/materials

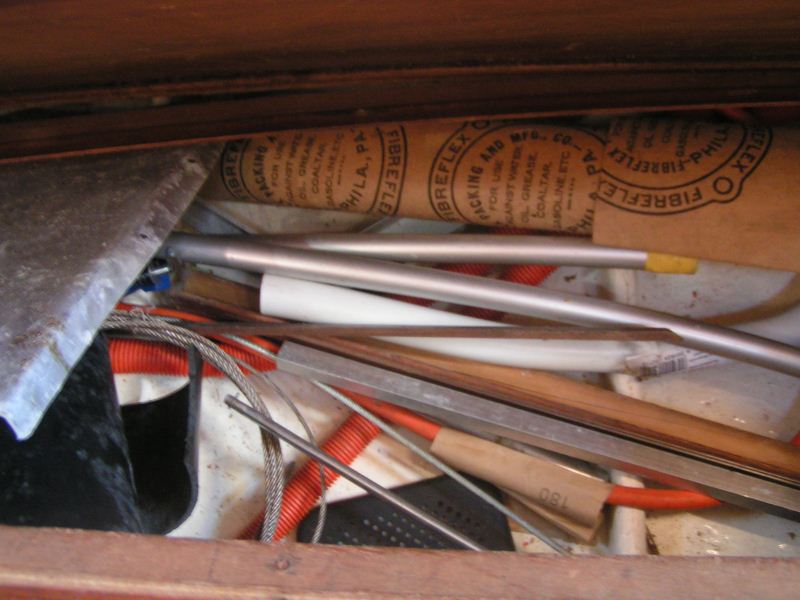

Tubes plastik, alu and stainless, wood, Alu sheets
spares, plumbing spares, cables
12V Bosch Power drill
Orbital sander

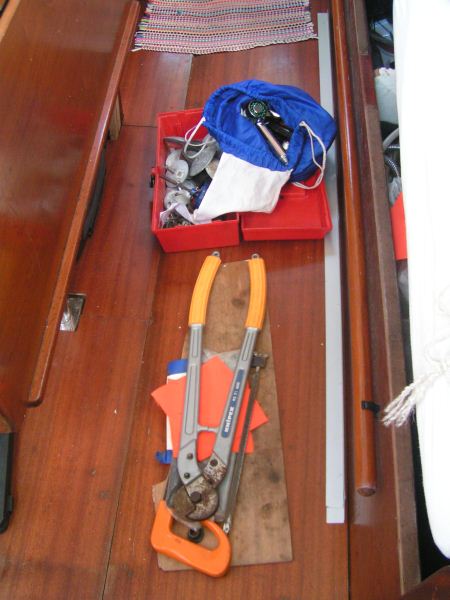

Plenty of tools, small electro spares, installation materials
spare Campinggaz-adapter, tubes
spare LEDs
spare water pump
sailmaterial
sail repair tape
paint, polyester resin, fibres, etc.
sparkplug outboard
sailmaker sail repair set
splissing tools
hot glue pistol

equipment
fixed stainless-sunbrella Bimini 2010

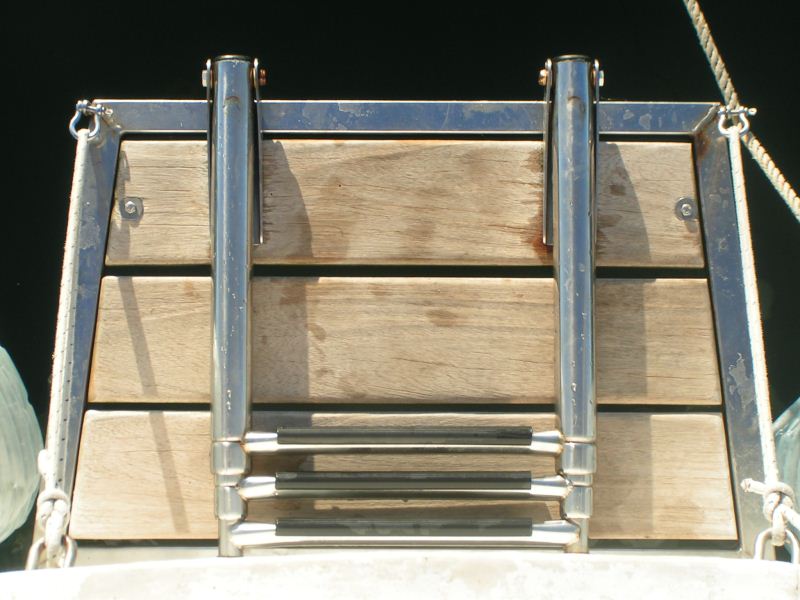

stainless-hardwood bathing platform, foldable stainless ladder 2010
fixed stainless rail

Sunbrella sun/rainshield f hatches 2010
sun/rainshield f Cockpit

Moskitonets f hatches and portholes

mixed
many things new in 2009 (Batteries, Waeco, Solarcharger/Panels, Sterling charger etc)

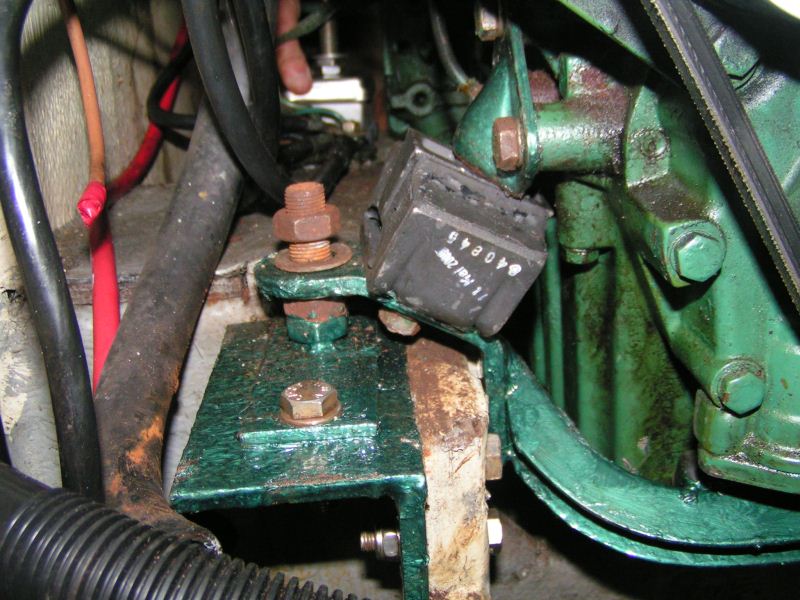

engine mounts new 2011
upholstery new 2009
ceilings painted 2011
Antifouling + Epoxi sealing 2011
Drinking water filter 2012
Stainless steel sink 2012 (still to be painted)
Open ocean fishing rod&winch
charger f. rechargeable batteries (AAA - 9V Block) 12V
kitchen equipment
waterproof bags
2 Body Boards Adults
1 Body Board Kid
Windsurfing Equipment
(Board&3sails)
Solar shower
Water collectors
